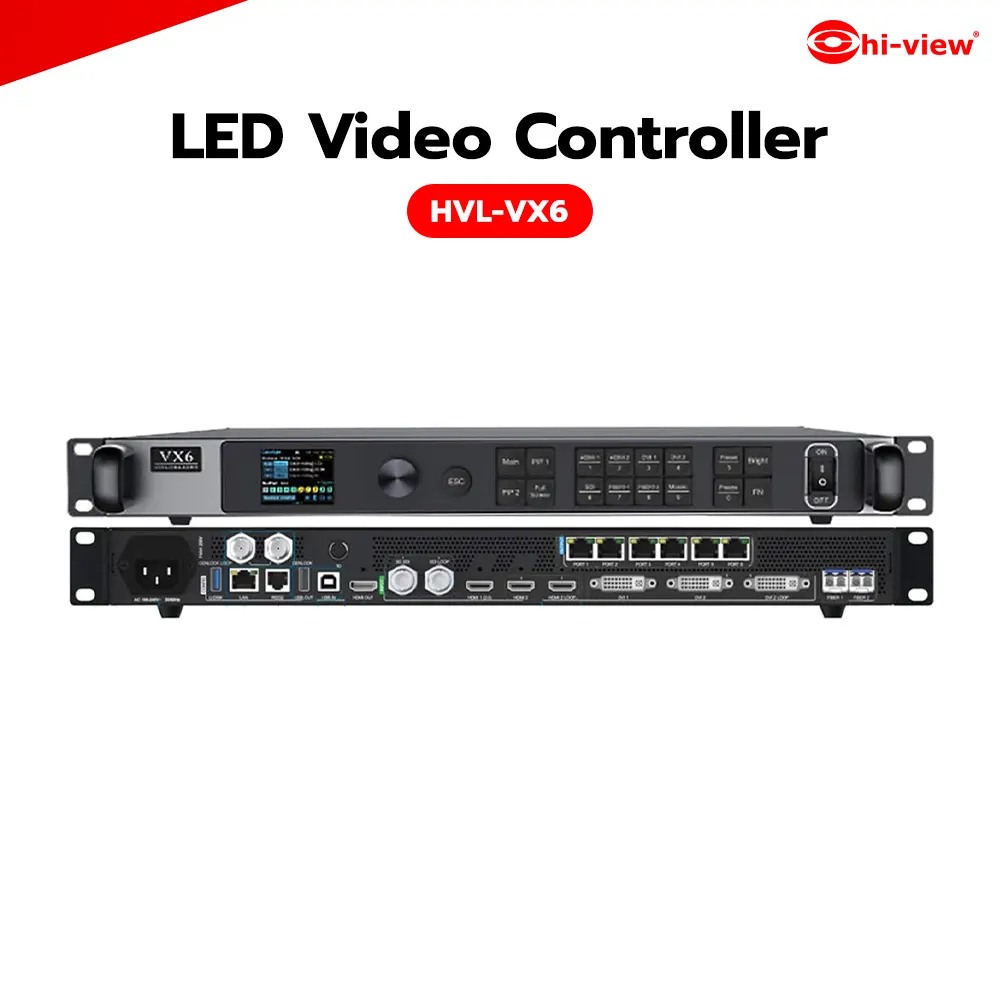

HVL-VX6

Input
* Video input port:
– 1xHDMI2.0
– 1xHDMI1.4 (IN&LOOP)
– 1xDVI (IN&LOOP)
– 1×DVI
– 1x3G-SDI (IN&LOOP)
– 1×10G fiber port (Fiber1)
* Up to 4096×2160@60Hz input.
* Support 8bit/10bit video signal.
* The HDMI2.0 port supports HDCP2.2 standard and is compatible with HDCP1.4 standard.
* The HDMI1.4 and DVI ports support HDCP1.4 standard.
23.98Hz to 240Hz frame rate.

Output
*6x Gigabit network ports.
– Maximum loading capacity of 3.93 million pixels, with up to 16,384 pixels in width and 8,192 pixels in height.
* 2× 10 Gigabit fiber ports.
– Fiber1 copies 6x Ethernet ports.
– Fiber2 copies/backups 6x Ethernet ports.
* 1x HDMI1.3 as previewing or video output port.
* 23.98Hz to 240Hz frame rate.
* Support both Ethernet port backup and controller redundancy.

Video processing
* Support 8bit and 10bit video processing.
* Video signal cropping, switching, and broadcasting-level scaling.
*Support 3x layers display, as well as independent adjustment of size and position of layers.
* Low latency; no latency achievable in Bypass mode.
* Support HDR display.
* Support Genlock and LOOP through.

Audio input/output
* HDMI port supports audio input.
* Support audio output via multi-function card.
